Antennas

SuperSig 4

In Stock ss4

For ultimate portability choose the SuperSig -4 Multiband (20m - 4m) 2 Element Yagi with a 4ft boom. Ideal for small gardens or portable use. Hand built in the UK using stainless steel hardware these antennas are built to last.

Your price
or express checkout
Description

The SuperSig -4 is the ultimate, small footprint, directional antenna.  Built in the UK with high quality components this antenna is a must for any serious operator with limited space or to take portable.

  • Multi-band (20m-4m) HF-VHF Yagi
  • Up to 11bDi of gain  (depending on frequency)
  • Stainless Steel Hardware
  • Minimum visual impact
  • Built to last

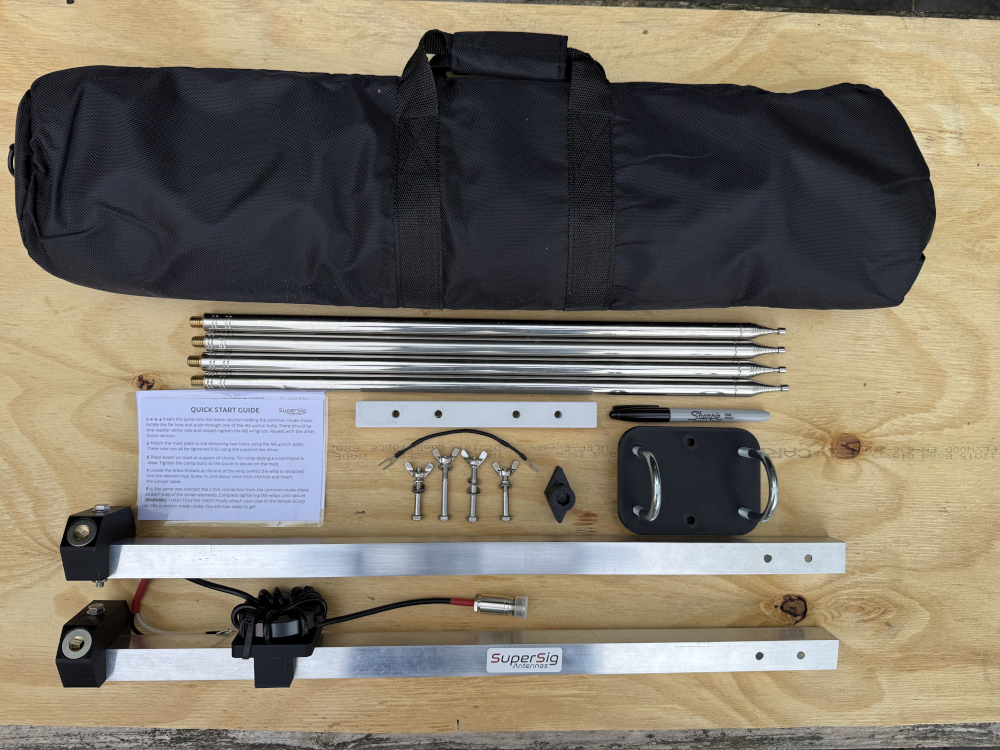

  • FREE CARRY BAG

Specification:

Frequency Range: 14 - 80MHz

Gain: 5-11.5 dBI depending on frequency and height of antenna

SWR: <1.5.1: @14MHz <1.2.1 on all other frequencies

Power Handling: 200w/150w CW/FT8  400w SSB or 400w/300w CW/FT8  800w SSB with QRO choke option

Max Full Element Length: 11.2m (36.7ft)

Boom Length: 1.22m (4ft)

Weight: 2.3KG (5lbs)

Max Mast Diameter: 44mm (1.73”)*

Wind loading: 17.8mps (40mph) Retracted: 11.1mps (25mph) Fully Extended

Maximum Turning Radius:  3m (9.8ft)

Specification
Title SuperSig 4
Category Antennas
SKU ss4
Condition new
Weight 2.3 kg
