SuperSig SliderBeam

In Stock SSSB1

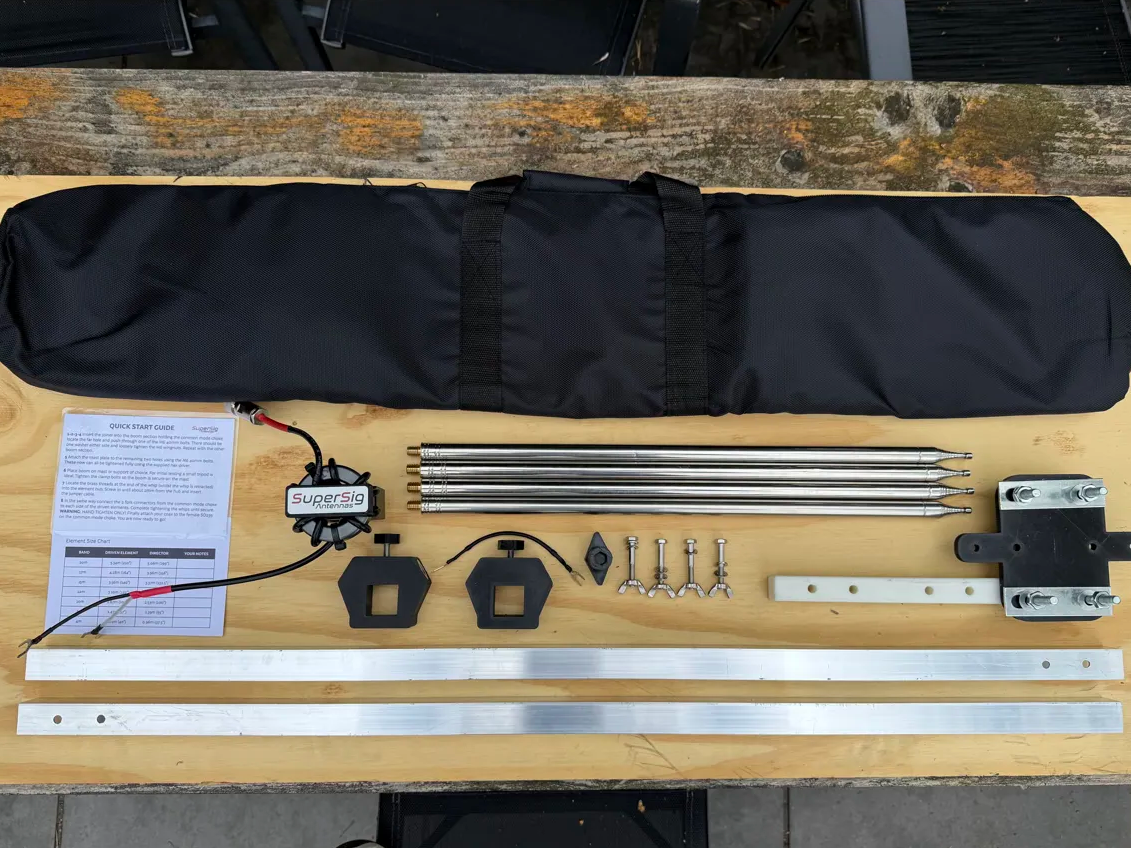

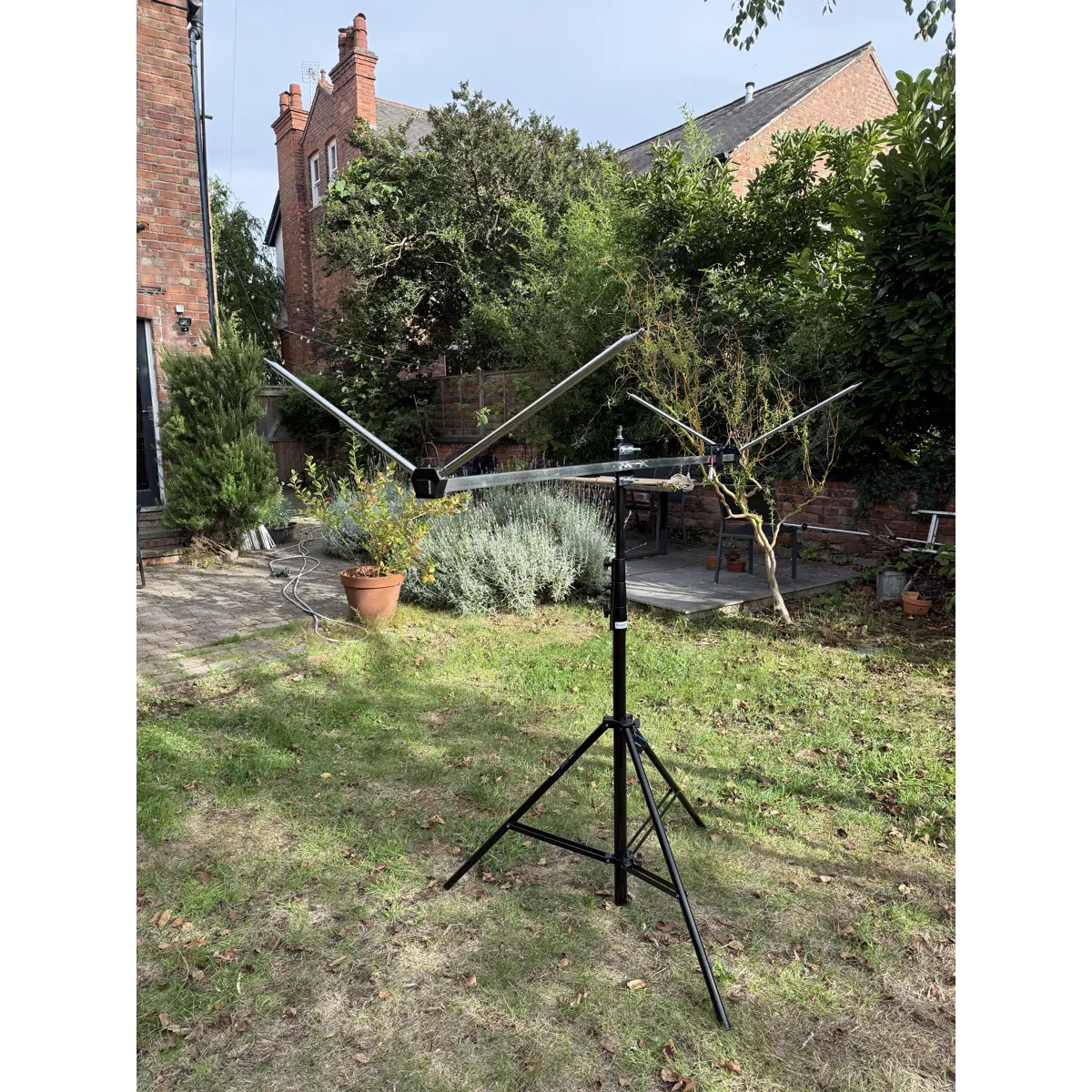

SuperSig SliderBeam. Multiband 20m - 4m 2 Element Yagi on a 6ft boom with adjustable element spacing. Ideal for small gardens or portable use. Hand built in the UK using stainless steel hardware these antennas are built to last. Add the optional Element Pack for 3 elements on 10-4m.

Your price
or express checkout
Description

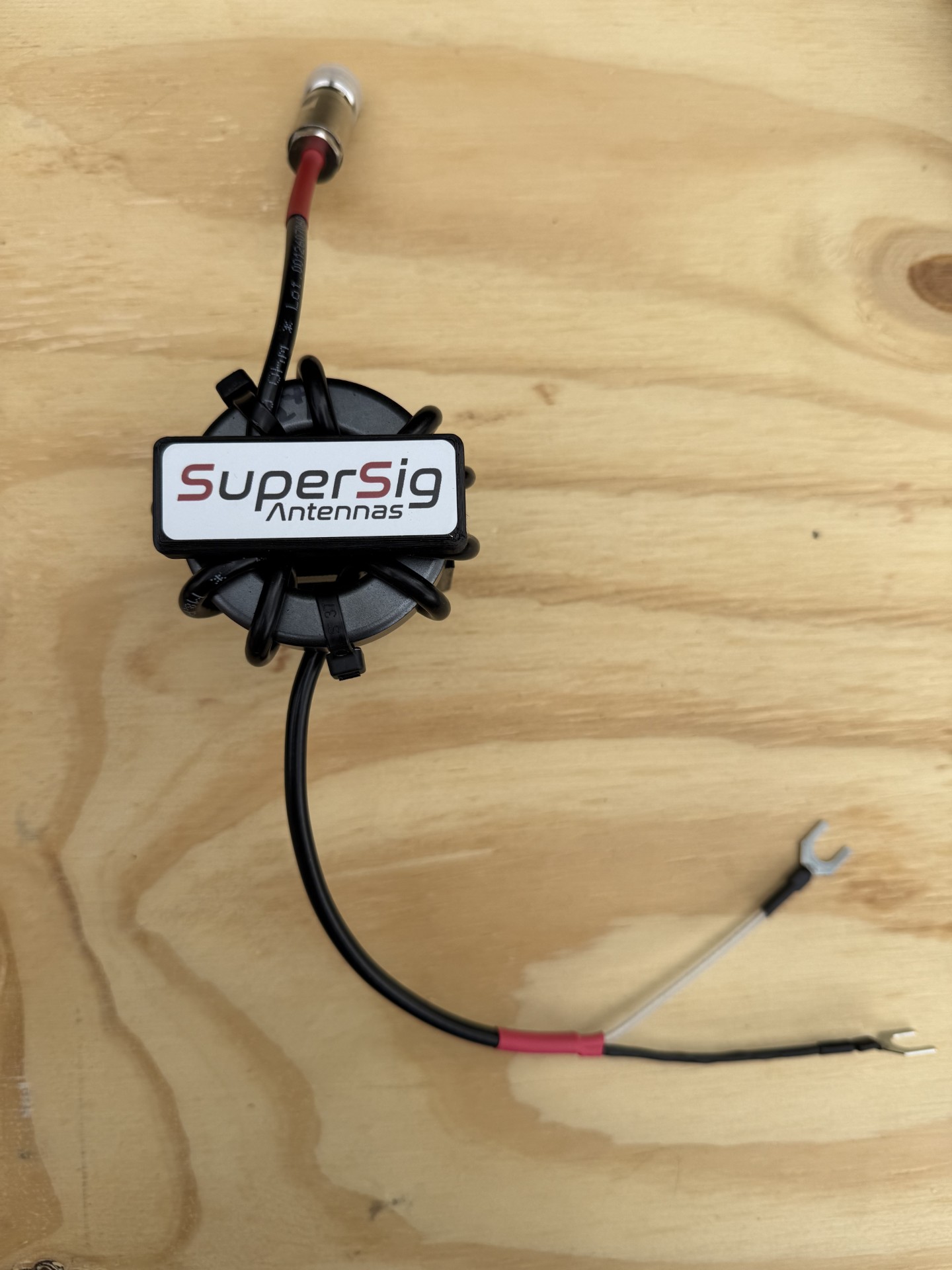

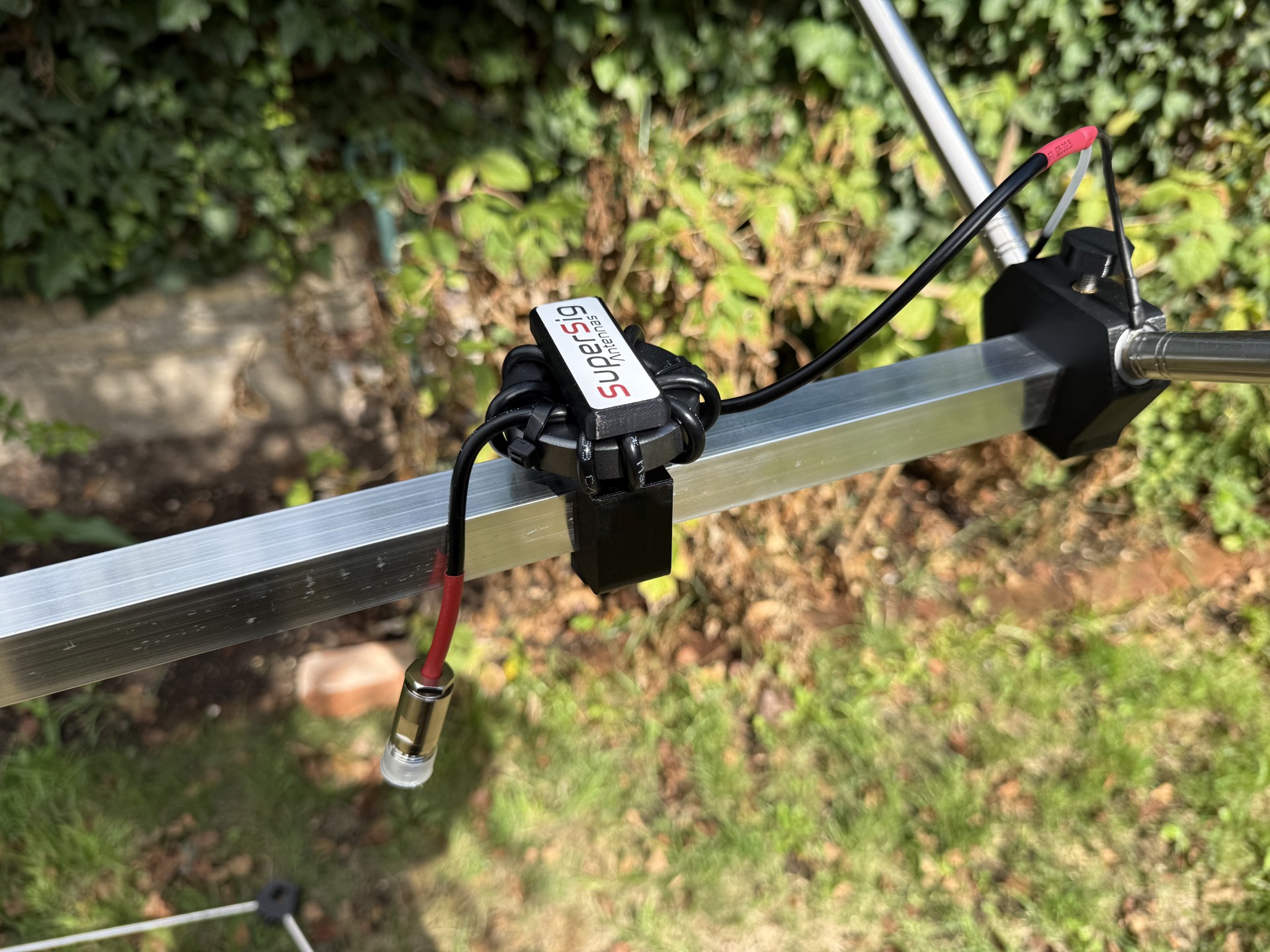

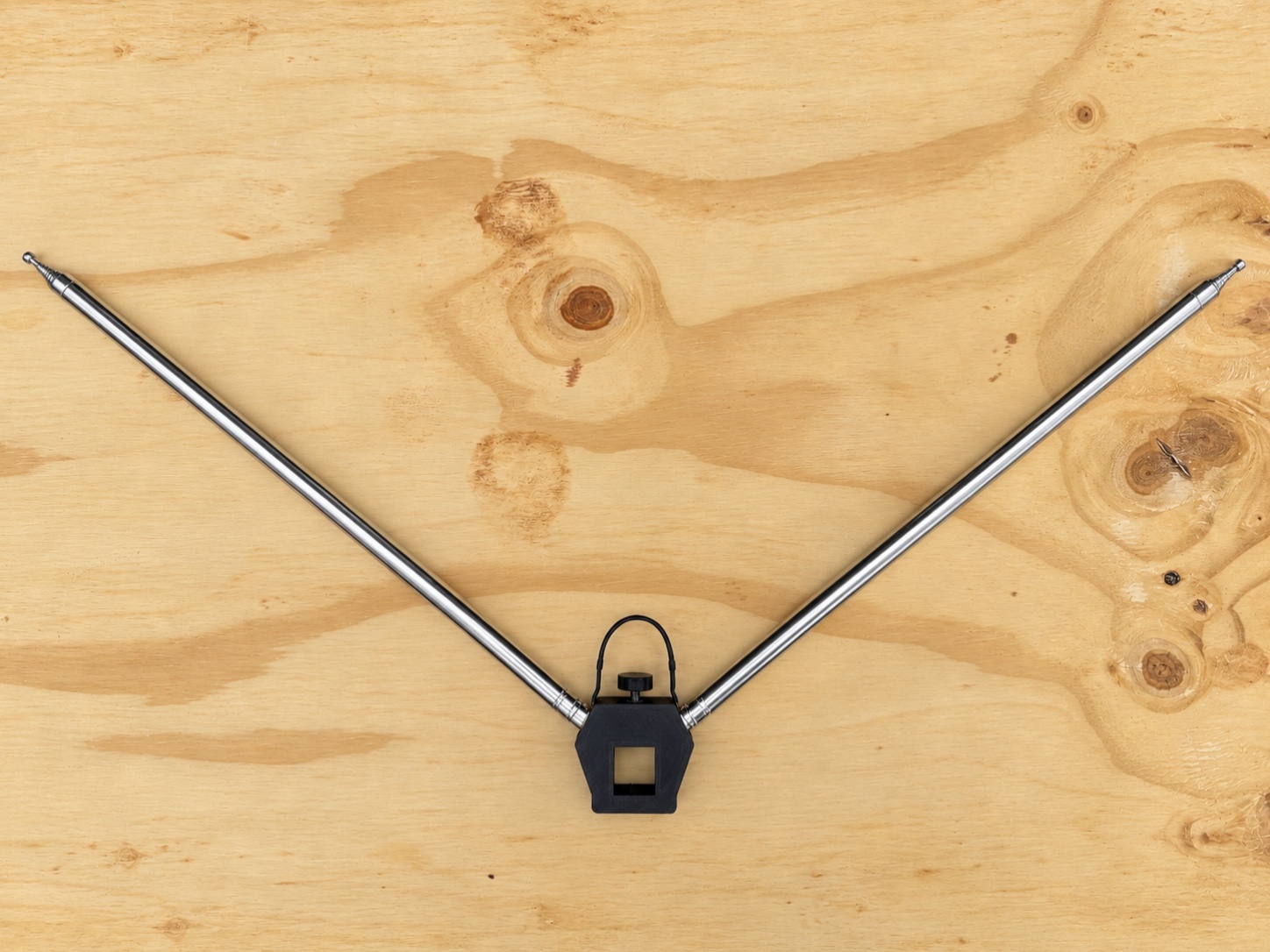

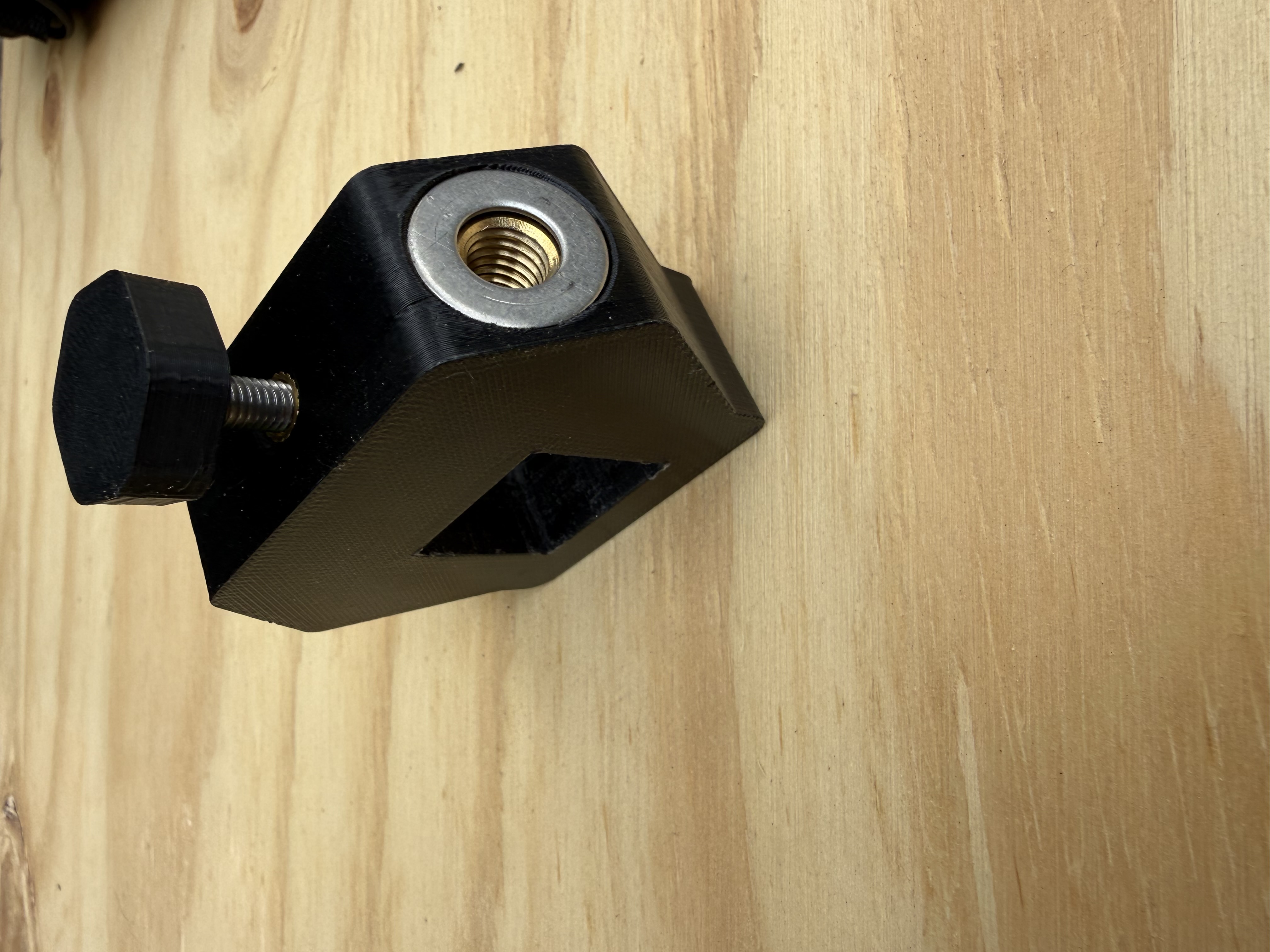

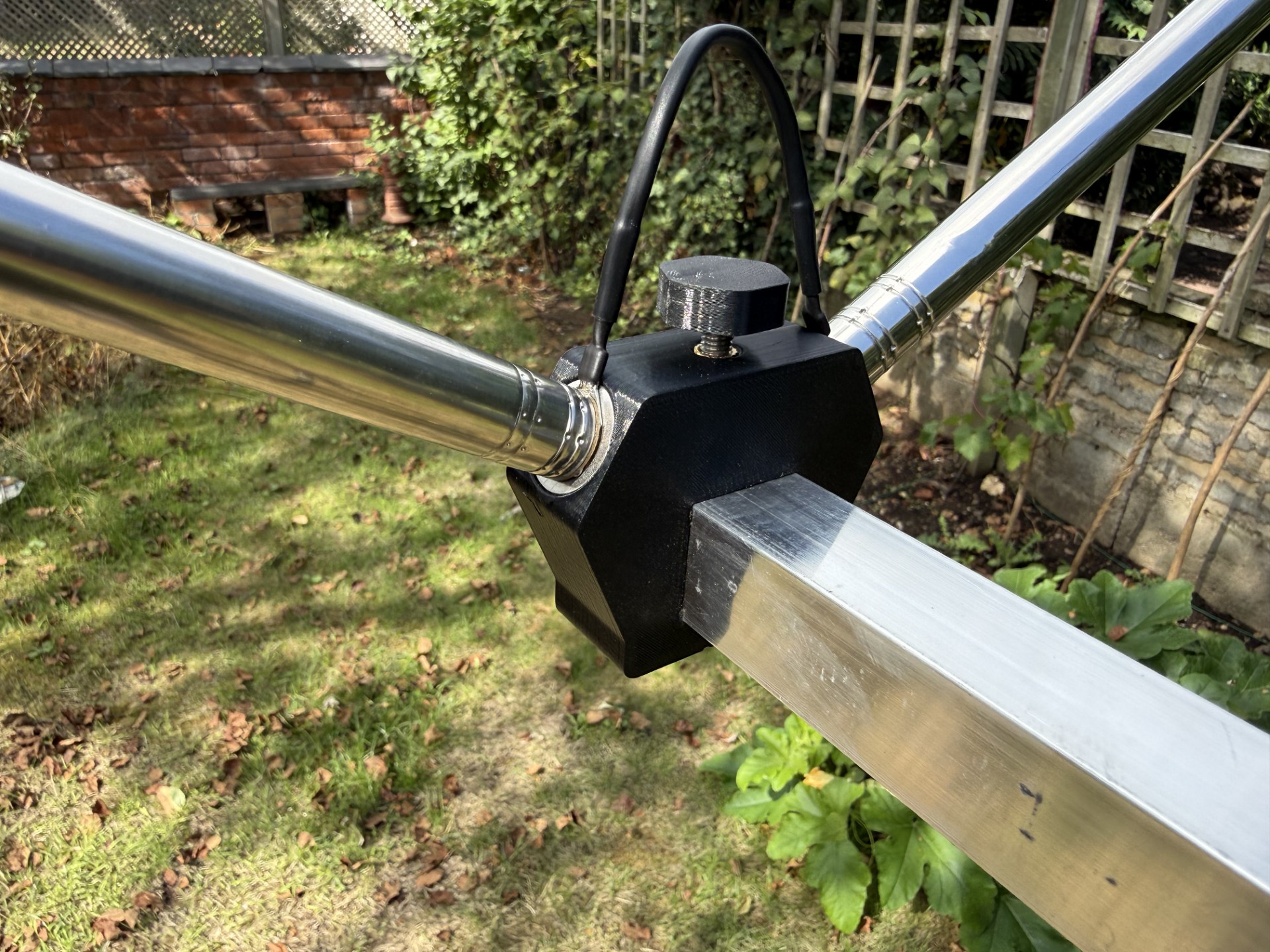

The SuperSig Sliderbeam utilises fully adjustable hubs and choke to get better response from the parasitic elements in turn giving increased gain, better impedence matching and directivity.

The SliderBeam has a slightly longer boom (1.83m - 6ft) but remains super lightweight at only 2.9kg (6.2lbs).  With the extra boom lenght it's possible to add an extra element on the higher frequency bands.

  • Multi-band (20m-4m) HF-VHF Yagi
  • Ability to add extra element for 28MHz +
  • Up to 11.8bDi of gain  (depending on frequency)
  • Stainless Steel Hardware
  • Minimum visual impact
  • Built to last

Frequency Range: 14 - 80MHz

Gain: 5-11.9 dBI depending on frequency and height of antenna

SWR: <1.4.1 @14MHz <1.2.1 on all other frequencies.

Power Handling: 200w/150w CW/FT8  400w SSB or 400w/300w CW/FT8  800w SSB with QRO choke option

Max Full Element Length: 11.2m (36.7ft)

Boom Length:  1.83m (6ft)

Weight:  2.7KG (5.9lbs)

Max Mast Diameter: 44mm (1.73”)*

Wind loading: 17.8mps (40mph) Retracted: 11.1mps (25mph) Fully Extended

Maximum Turning Radius: 3.2m (10.5ft)

Download the Far Field Plots

Specification
Title SuperSig SliderBeam
Category Antennas
SKU SSSB1
Condition new
Weight 3.8 kg
